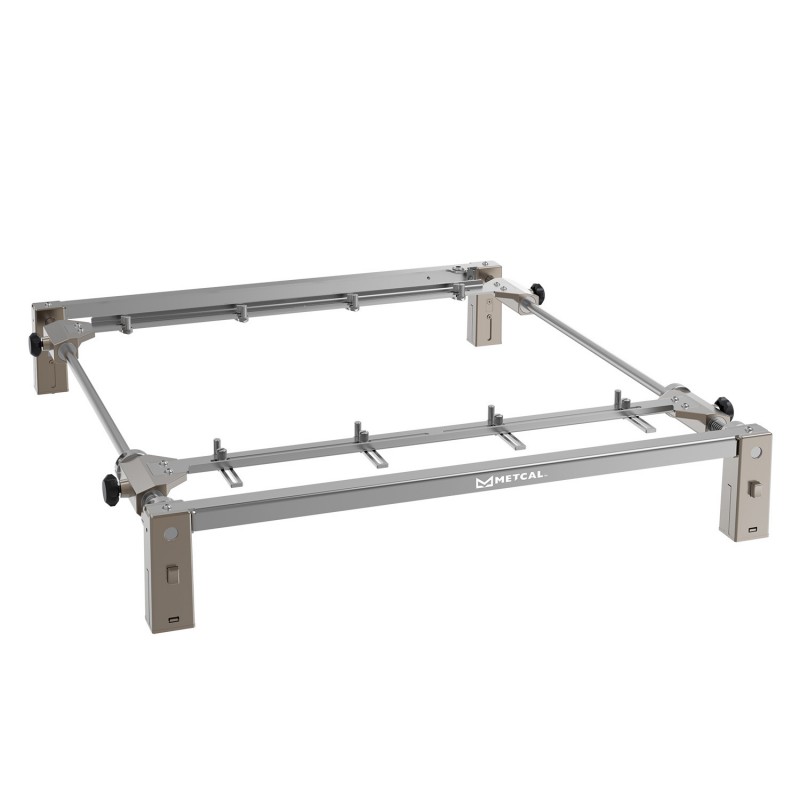

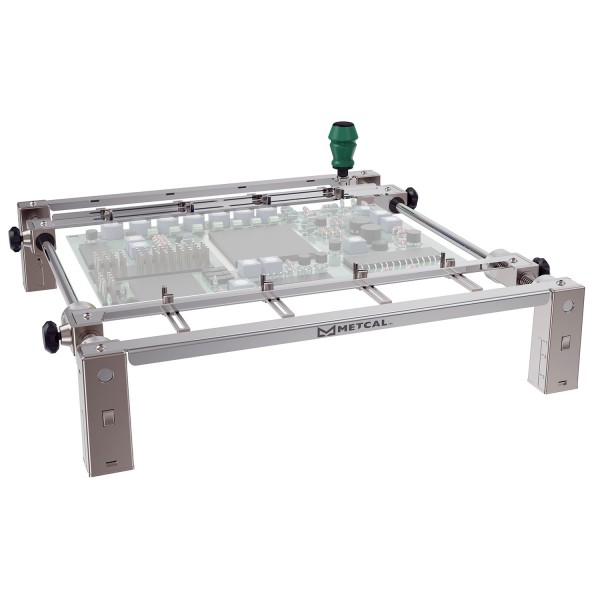

METCAL - Premium Board Holder, max. PCB size 10" x 10" / 258 x 258 mm, adjustable in all directions, ESD Safe
15-20 Ημερες

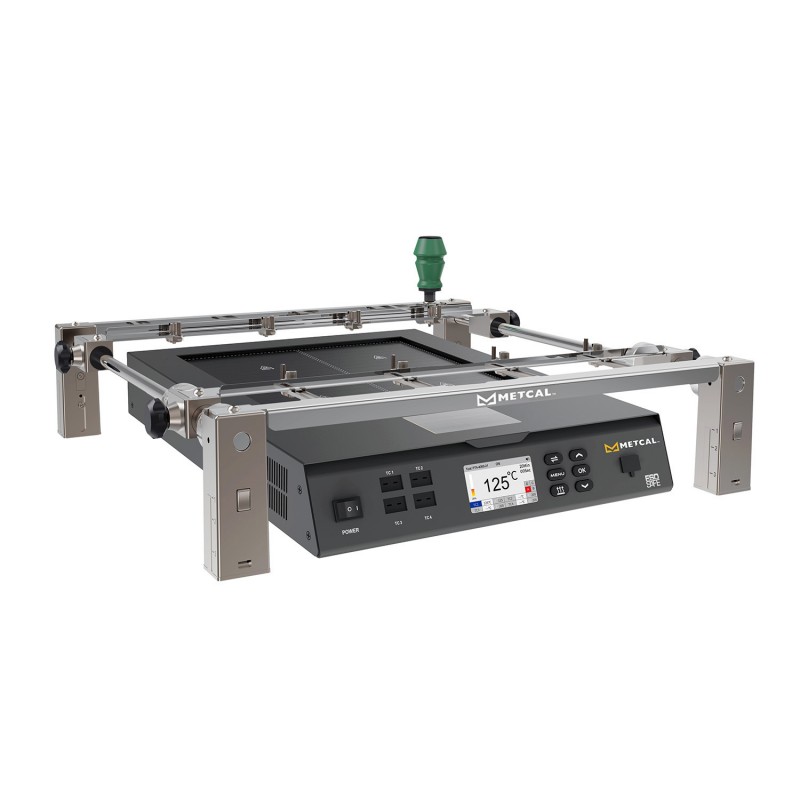

Metcal BH-4000 and BH-8000 Premium Board Holders are specially designed for use with the PT4-4000 and PT4-8000 Preheaters, respectively.
The BH-4000 Board Holder features:
The BH-4000 Board Holder features:
- 16.65" x 16" x 4" / 423 x 406 x 102.5 mm size
- Maximum PCB Size of 10" x 10" / 258 x 258 mm
- PCB Thickness Range of 0.02" ~ 0.12" / 0.5~3 mm
- Adjustable in all directions (front, back, left, right)
- Three levels of adjustable height
- Includes a screwdriver and ESD grounding wire
- Compatible with PT4-4000 4-Zone Preheaters
| Part Number | BH-4000 |
| Adjustable Parts | Adjustable in all directions (front, back, left, right) |
| Height Adjustment | Three levels of adjustable height |
| Clamping Spring Force | 3.3 lbs 1.5 kg |
| Locking Mechanism | Supported |
| Maximum PCB Size | 10" x 10" 258 x 258 mm |
| PCB Thickness Range | 0.02" ~ 0.12" 0.5~3 mm |
| Accessories | (1) Screwdriver, (1) Grounding Wire |
| Dimensions | 16.65" x 16" x 4" 423 x 406 x 102.5 mm |
- Compatible with PT4-4000 Preheater
- 16.65" x 16" x 4" / 423 x 406 x 102.5 mm
- Maximum PCB Size of 10" x 10" / 258 x 258 mm
- PCB Thickness Range of 0.02" ~ 0.12" / 0.5~3 mm
- Adjustable in all directions (front, back, left, right)
- Three levels of adjustable height
- Includes a screwdriver and ESD grounding wire
- BH-4000 Premium Board Holder
- Multi-Use Screwdriver
- Grounding Wire
- User Manual
