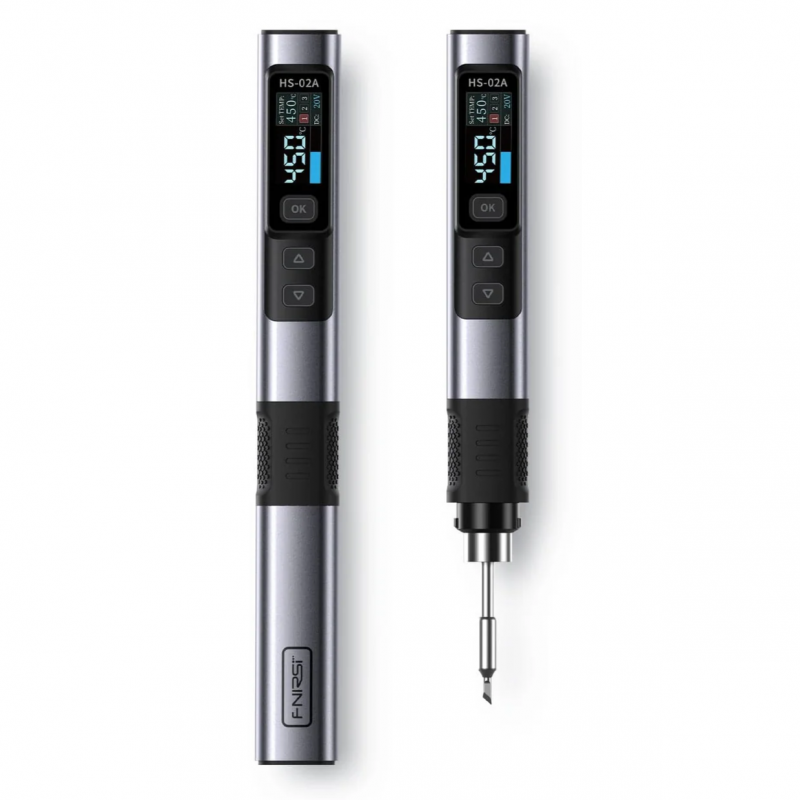

Fnirsi HS-02A MAX Portable Soldering Iron with 6 tips and 100W USB adaptor
Details
The Fnirsi HS-02A is a smart portable soldering iron with an ergonomic design. This is a full set, offering a soldering iron, a 100W power adapter, a USB-type-C cable and 6 soldering tips. The power adapter provided with the iron can deliver 100W, providing the iron with sufficient power for soldering tasks. The HS-02A has a temperature range of 100-450 ℃ heats up to an operational temperature in 4 seconds, and has a great temperature recovery during soldering.
The HS-02A has a metal housing and the tip is firmly secured in the soldering iron, unlike theTS101 and the Pinecil. Furthermore, a metal hood is included, so the soldering iron can be safely stored. Finally, the HS-02 comes in a series, the other model the HS-02B has a more narrow tip, which is more suitable for precise soldering work. Note that this version only comes with 3 tips.
Specifications
| Power | 100 W |
| Temperature range | 100 °C - 450 °C |
| Heating time | ~ 4 sec |
| Tip system | Active |
| Temperature stability | ± 2 % |
| ESD safe | Yes |
| Display | 0.96" IPS |
| Automatic standby | Yes, after 30 minutes |
| Weight | 61 g |
| Dimensions | 180 x 20 mm |

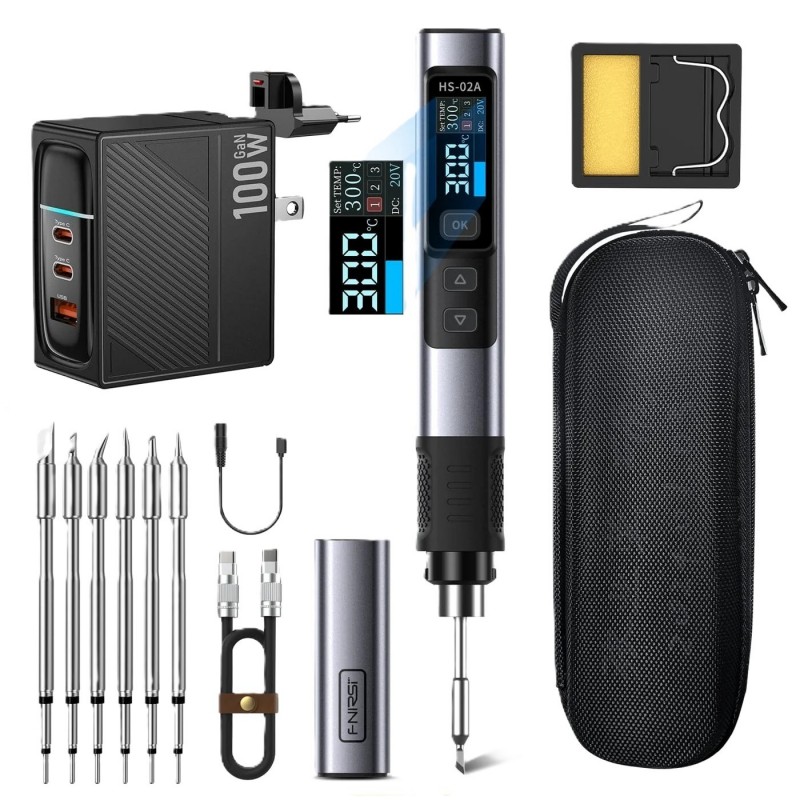

Accessories
The Fnirsi HS-01 soldering iron comes with:- DC to USB type-C power cord
- USB type-c charging cable
- 100W USB-C power supply
- Mini soldering iron stand
- HS-02A-K soldering tip (knife 4.5 mm)
- HS-02A-KU soldering tip (knife 2.7 mm)
- HS-02A-JS soldering tip (conical bent, sharp tip)
- HS-02A-L soldering tip (conical, sharp tip)
- HS-02A-C2 soldering tip (bevel ⌀2.2 mm)
- HS-02A-B soldering tip (bevel ⌀1 mm)
