Owon HDS2202S handheld oscilloscope 200MHZ

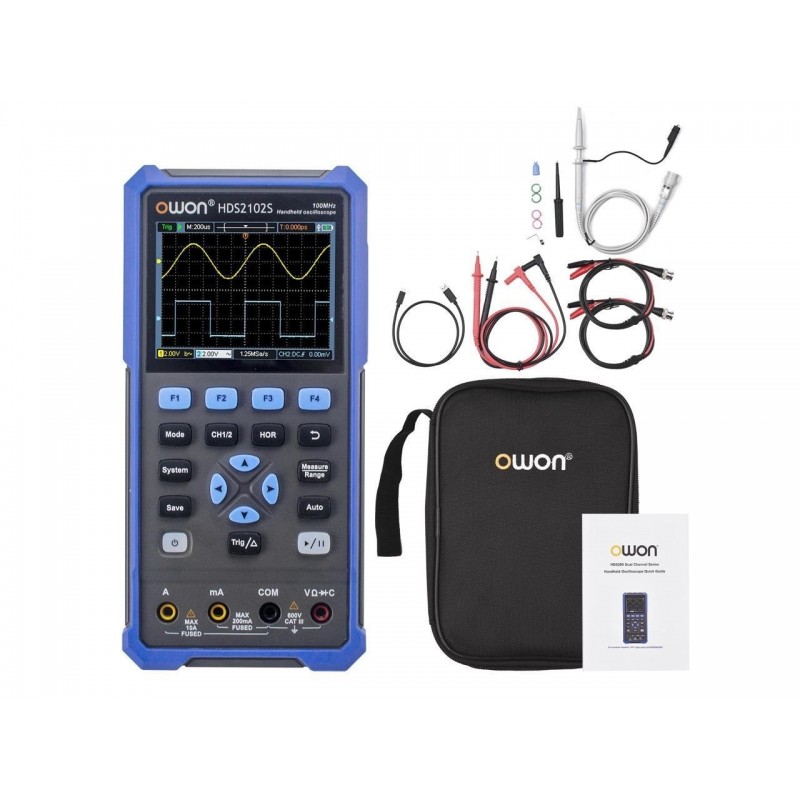

Note: the HDS2202S looks externally identical to the product shown in the images.

The HDS2202S is a portable dual-channel oscilloscope that can also be used as a multimeter and a function generator. The meter sports a 3.5" high-contrast colour display suitable for outdoor use and it runs on a pair of 18650 batteries, good for up to 6 hours of continuous use. You can hook up the meter to a PC host with USB-C to use it with Owon's desktop software, control it via SCPI or to use it with a power bank.

Signals can be recorded and stored internally. Its memory holds up to 8k data points. Waveforms can also be stored as image or CSV, to be exported via USB to a PC host.

Besides being an oscilloscope, it independently acts as a fully featured 20 000 count True-RMS multimeter. It has the capability to measure voltage, current, resistance, capacitance, continuity and diodes. The readings will be displayed comfortably large on the display as can be seen in the demonstration video below. Similar to conventional multimeters, it has auto ranging.

Specifications

For more information, please refer to the user guide which you can download below.

Accessories

The HDS2202S comes by default with:

•  2x 18650 batteries
•  USB cable
•  Set of test leads
•  Probe
•  2x BNC - alligator clips cable
•  Power adapter
•  Carrying pouch
