Micsig MSP510 passive probe

7-10 Ημερες Micsig MSP510 passive probe
Micsig MSP510 passive probe

Details

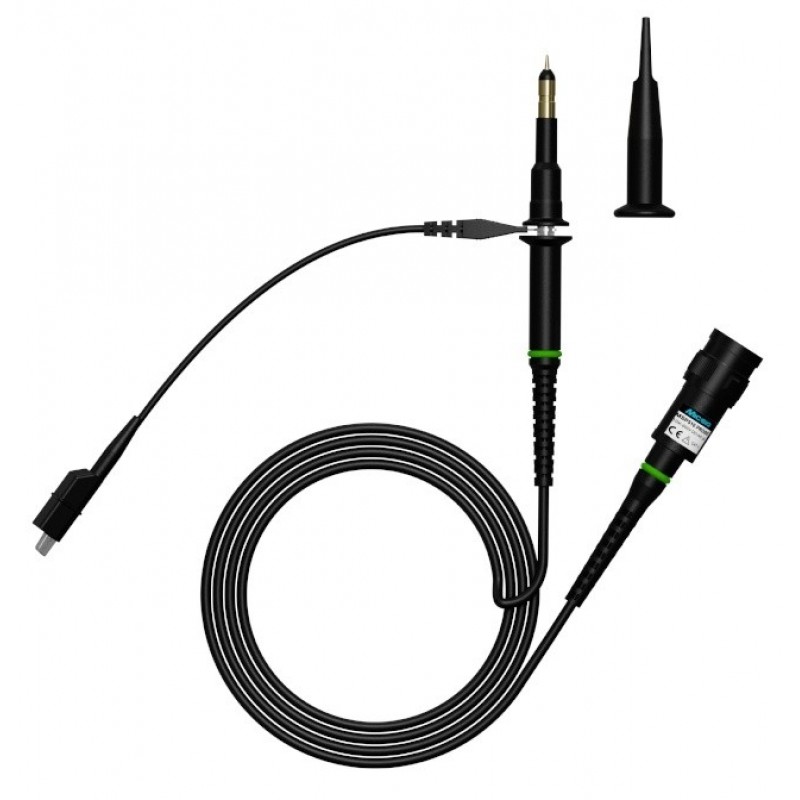

The Micsig MSP510 is a competitively priced 500MHz passive DC-coupled probe with 10MΩ input impedance and a 1:10 attenuation ratio. This passive probe is universal, which means this probe can be used with any oscilloscope. The MSP510 probe features a 1.5m cable, and is rated for a maximum input voltage of 300V AC.

Specifications

Bandwidth500 MHz
Probe tip capacitance10.5 pF ± 0.5 pF
Input impedance10 MΩ
Attenuation ratio1:10
Maximum input voltage300 V AC
Cable length132 cm
Weight53 g

Accessories

The MSP510 probe comes with:

  • 1x Retractable hook tip
  • 1x Adjustment tool
  • 8x Marker rings (4 colours)
  • 1x Ground lead (alligator clip)
  • Κατασκευαστής: MICSIG
  • Κωδικός Προϊόντος: MSP510
  • Διαθεσιμότητα: 7-10 Ημερες
  • Download brochure
  • 53,32€
