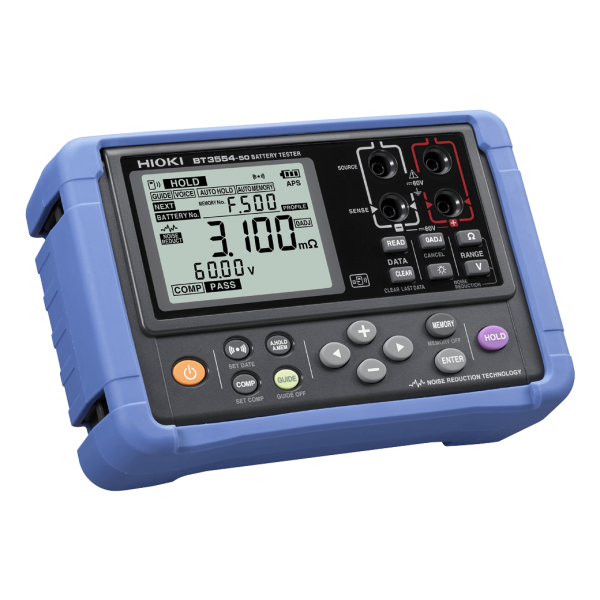

HIOKI BT3554-50 BATTERY TESTER

Resistance measurement range: 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges

Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt)

Testing source frequency: 1 kHz ±30 Hz

Function for avoiding noise frequency enabled: 1 kHz ±80 Hz

Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range)

Open terminal Voltage: 5 V peak

Voltage measurement range:     ± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt

Temperature measurement accuracy:    Measurement range: -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy*: ±1.0°C (±1.8°F)

* When using the Clip Type Lead with Temperature Sensor 9460.

* When using the Temperature Probe 9451, add ±0.5°C (±0.9°F) (cable length: 1.5 m [59.1"]).

* When using the Temperature Probe 9451S, add ±0.5°C (±0.9°F) (cable length: 0.1 m [3.94"]).

Compares measured values with set threshold values to make judgments and reports them to the user.

Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound

·        When the Voltage value (high): Resistance value (low)= PASS,

·        Resistance value (medium)= WARNING

·        Resistance value (high)= FAIL

If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight.

User-selectable voltage judgment method: ABS (absolute value judgment), POL (polarity judgment )

Memory functionality Operation: Save, load, and delete measurement data, Save and delete profile information, Number of data sets: 6000, Memory architecture: 500 data sets per unit (12 units)

Audio output is generated by a connected mobile device when using the Z3210 and a supported application (GENNECT Cross).

Bluetooth® wireless communications (when Z3210 installed)

Continuous operating time: About 8.3 hr. (without Z3210 installed), About 8.2 hr. (with Z3210 installed and wireless communications active)
