MICSIG STO2002 8'' TABLET ΠΑΛΜΟΓΡΑΦΟΣ 2CH

Details

The Micsig STO2002 is the 2-channel 200MHz model of STO series, with a high waveform update rate of 130.000wfms/s. It has 31 automatic built-in measuring programs and a large 32GB internal storage. The serial bus triggering, decoding and analysis system is able to display these waveforms and various other data at the same time.

Furthermore, the oscilloscope can be used in 3 operation modes: Full touch operation, Physical button control panel, and a mixture of both. The integrated 7500mAh Li-ion Battery combined with the soft TPU+ABS protective shell make this oscilloscope ideal for both use at home and on the road.

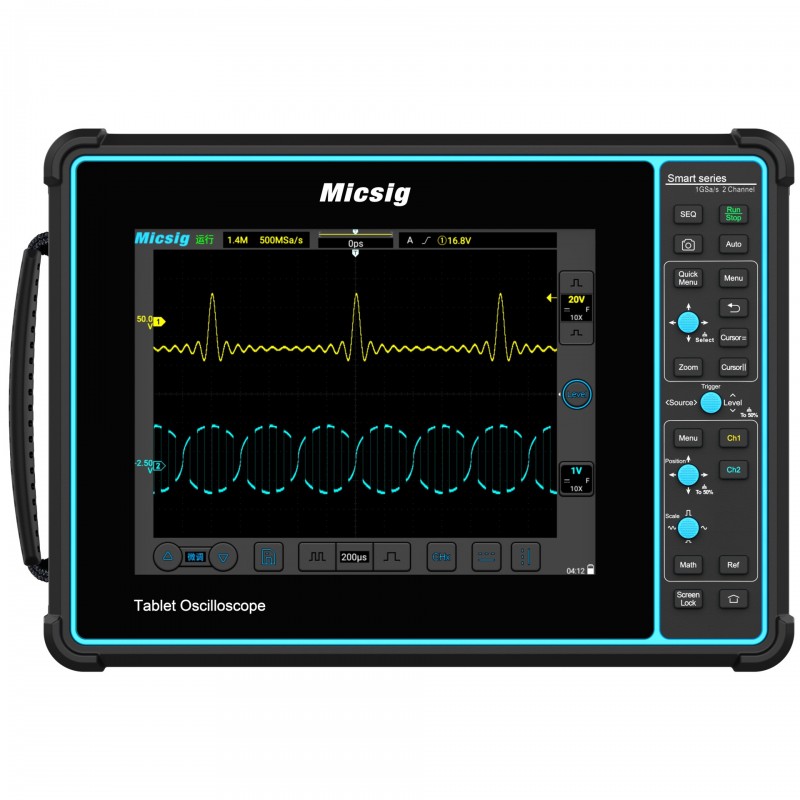

The STO2002 has a large 8" TFT touchscreen featuring a bright 256-level intensity grading and a warm/cold color temperature display. The software runs on a powerful Android system and works essentially the same as a tablet. For example, you can connect to the Internet via Wi-Fi to send data, take photos/videos and control it remotely through a PC or smartphone.

Model overview

The models in the STO series differ in bandwidth, the number of channels and rise time:

Specifications

The Micsig STO2002 comes with the following accessories:

·        2 x Passive probe

·        Integrated 7500mAh Li-ion battery

·        Power cord with adapter
