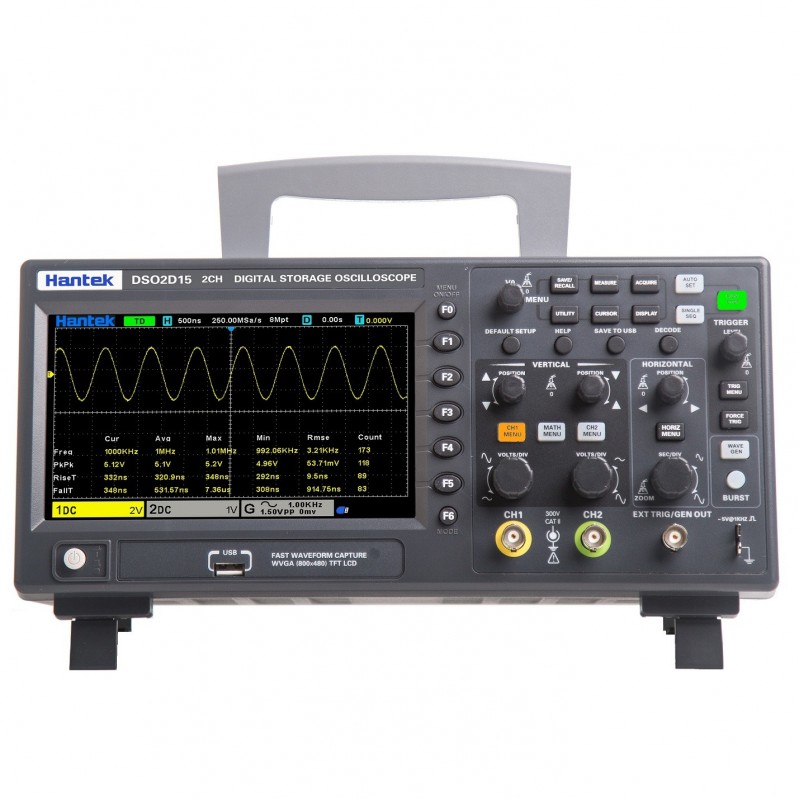

Hantek DSO2D15 oscilloscope 2CH 150MHZ
Details
The Hantek DSO2D15 is a budget 2-channel oscilloscope with 150 MHz bandwidth and a built-in function generator. The DSO2D15 features decoding and trigger options like I2C, SPI, UART/RS232 and CAN, which is a nice plus for an oscilloscope in this price range. A unique feature is that there is no fan in the oscilloscope, so it makes almost no noise.
Thanks to a sample rate of 1 GSa/s and a memory depth of 8 Mpts you can easily work with this oscilloscope. There are also USB connections available for exporting measurement results to the PC or to a USB memory stick. There is also a voltmeter to measure AC and DC voltages up to 300 VRMS.
If you are looking for more bandwidth, take a look at the Hantek DSO2D10.
All in all, the Hantek DSO2D15 a competitively priced oscilloscope that is not out of place on the workbench of any hobbyist.
Specifications
| Oscilloscope | ||
| Bandwidth | 150 MHz | |
| Sample rate | 1 GSa/s (1 channel) 500 MSa/s (2 channels) | |
| Memory depth | 8 Mpts (1 channel) 4 Mpts (2 channels) | |
| Channels | 2 | |
| Vertical resolution | 8 bits | |
| Horizontal scale | 2 ns/div - 100 s/div | |
| Vertical sensitivity | 2 mV/div - 10V/div | |
| Rise time | 2.4 ns | |
| Decoding and trigger | I2C, SPI, UART/RS232 and CAN | |
| Math operations | +, -, ×, ÷, FFT | |
| Max. voltage | 300 VRMS, CAT II 300V | |
| Function generator | ||
| Frequency range | 25 MHz | |
| Channels | 1 | |
| Sample rate | 200 MSa/s | |
| Waveforms | Sine, square, ramp, Exp, noise, DC, ARB | |
| General | ||
| Display | 7" 800 x 480 | |
| Interfaces | USB Host, USB Device | |
| Weight | 1.9 kg | |
Accessories
The Hantek DSO2D15 is supplied including:
- USB cable
- Power cord
- 1 probe
- 2x BNC to alligator clip cable
