Details

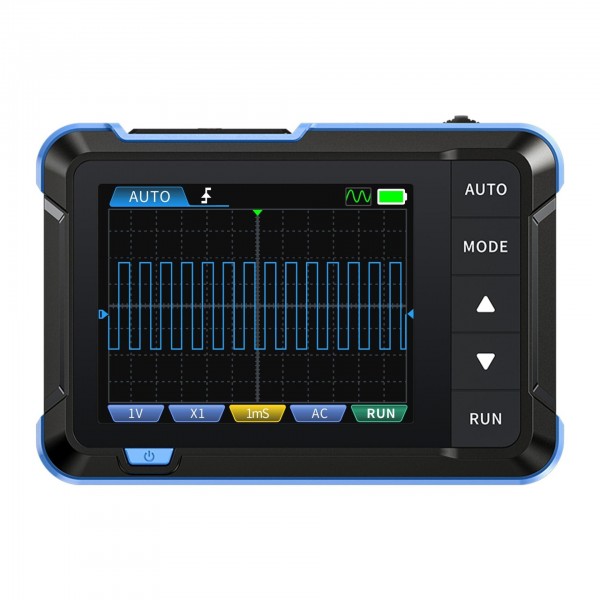

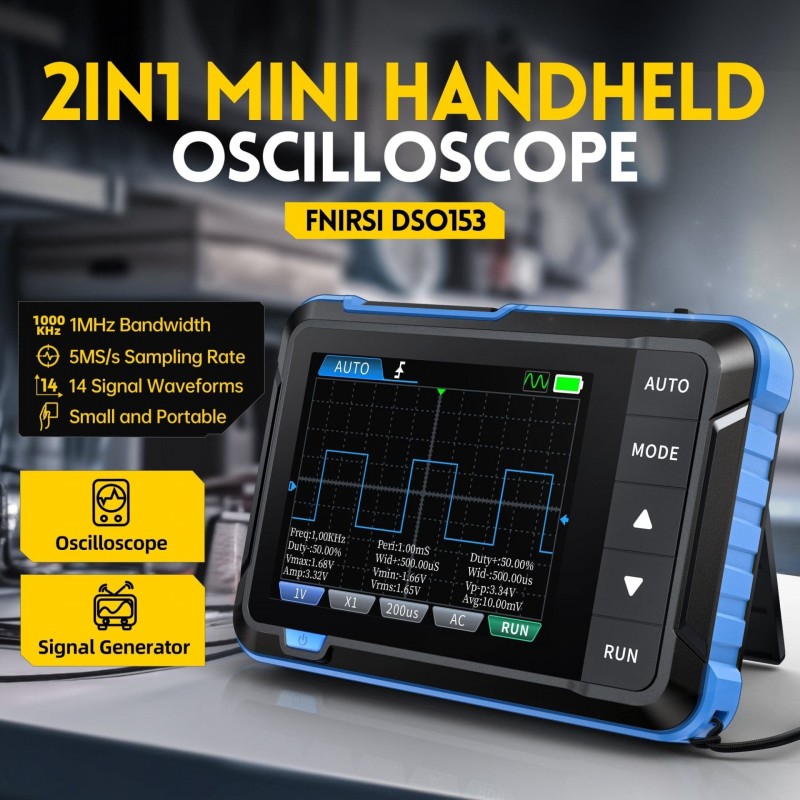

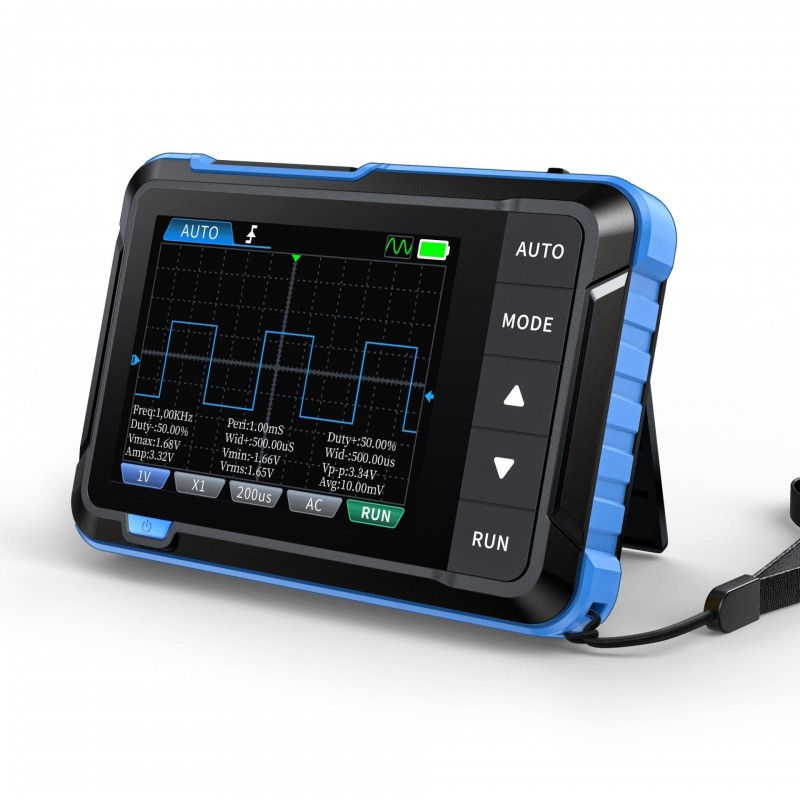

The Fnirsi DSO153 handheld oscilloscope is the upgraded version of the DSO152 oscilloscope, also featuring a function generator. The oscilloscope has 1 channel, a bandwidth of 1MHz and a sample rate of 5MS/s. It can measure a voltage range of up to 800Vpp with the included probe. The function generator has a single channel, an adjustable frequency range of 0-10kHz and an adjustable amplitude between 0.1-3.3V. The function generator can also output 14 different waveforms, including sine, rectangular and sawtooth waves. The oscilloscope can be connected through MCX for signal input or via BNC using the included adapter. The DSO153 also has a 2.8" HD LCD display. Finally, the DSO153 has a 1000mAh battery, allowing for up to 4 hours of use on a single charge.
Specifications
Oscilloscope
| Bandwidth | 1 MHz |
| Channels | 1 |
| Sample rate | 5 MS/s |
| Vertical scale | 10 mV/div - 20 V/div |
| Horizontal scale | 500 ns/div - 20 s/div |
| Display | 2.8" LCD (320x240) |
| Battery | Up to 4 hours |
| Dimensions | 99 x 68.3 x 19.5 mm |
| Weight | 100 g |
Function generator
| Bandwidth | 0 - 10 kHz |
| Channels | 1 |
| Sample rate | 5 MS/s |
| Frequency resolution | 0 - 10 kHz |
| Amplitude range | 0.1 - 3.3 V |
| Built-in functions | Sine, Rectangular, Sawtooth, Half, Full, Step, Anti-step, Noise, Exponential rise, Exponential drop, DC, Multi-audio, Sink pulse, Lorentz |
Accessories
- 1x Alligator clip probe
- 1x USB-C charging cable
- 1x Lanyard
- 1x P6100 high voltage probe (100 MHz, 1x/10x)
- 1x Female BNC to male MCX adapter
