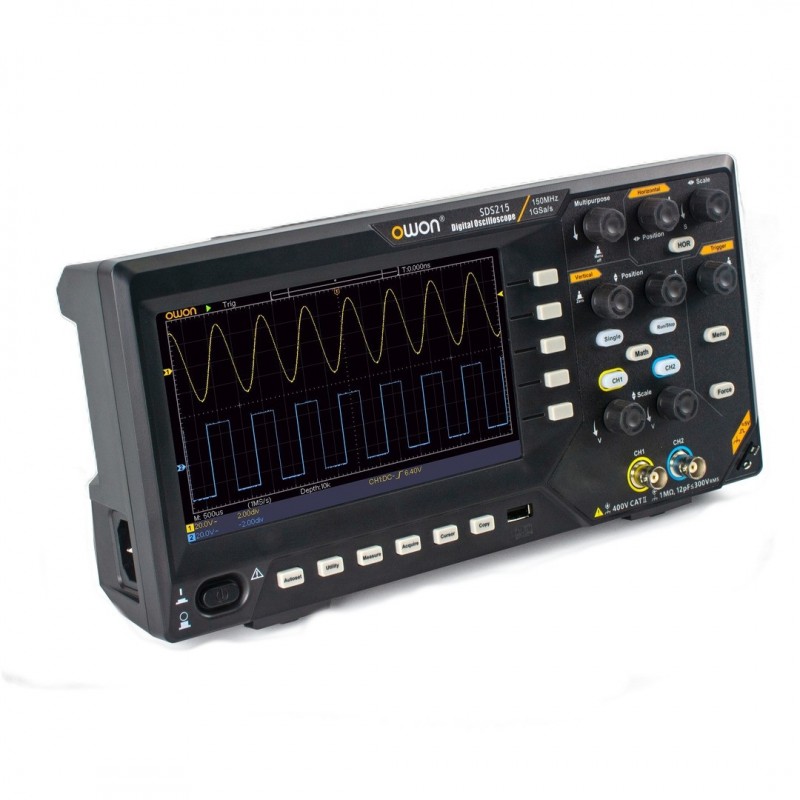

Owon SDS210 2CH 100MHZ oscilloscope
7-10 Ημερες
Details
The Owon SDS210 oscilloscope is part of the competitively priced SDS200 series. This oscilloscope has a sample rate of 1GSa/s and a bandwidth of 100MHz. Moreover, the SDS210 has 2 channels and it has a great memory depth of 20Mpts. The oscilloscope has dual-channel independent sample rate, both channels have a sample rate of 1GSa/s simultaneously.
There are USB connections on the back and on the front for exporting measurement results or directly monitoring the device with your PC. The oscilloscope has two trigger options, edge and video.
Specifications
| Channels | 2 |
| Memory depth | 20 Mpts |
| Sample rate | 1 GS/s |
| Rise time | ≤3.5 ns |
| Trigger types | Edge, Video |
| Vertical resolution | 8 bit |
| Vertical scale | 2 mV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Measuring parameters (vertical) | Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms, |
| Measuring parameters (horizontal) | Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut, Delay |
| Display | 7" TFT LCD (800x480) |
| Connectivity | USB (Host/Device) |
| Eleshop noise rating | ★ ★ ★ ★ ★ |
| Dimensions | 301 x 152 x 70 mm |
| Weight | 1.1 kg |
Accessories
The Owon SDS210 oscilloscope comes with:
- USB cable
- Power cord
- 1 set of passive probes 100MHz (i.e. 2 probes)
- Probe setting tool
