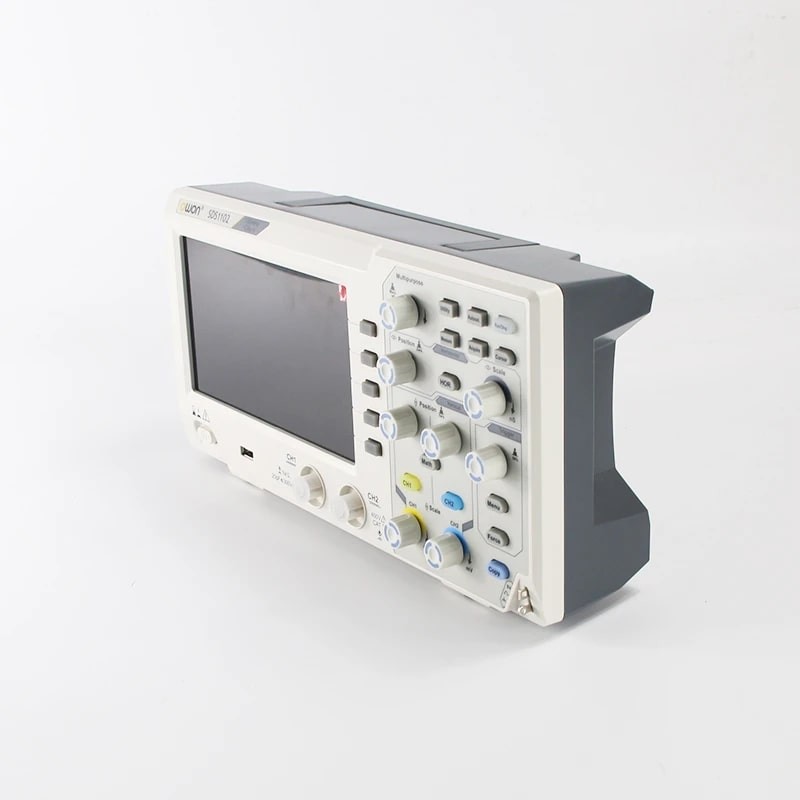

Owon SDS1102 oscilloscope 2ch 100MHz
Details
The Owon SDS1102 is a competitively priced oscilloscope with a
sample rate of 1 GSa/s and a bandwidth of 100 MHz. With this oscilloscope, you
have 2 channels at your disposal and it is possible to store 10 K points per
measurement. There is a USB connection on the back for exporting measurement
results to the PC, and a USB connection on the front for exporting to a USB
memory stick.
This model has passive cooling: there is no fan, so it is silent!
Model overview
The
models of the SDS1000 series differ mainly in the bandwidth and channels. The
most important specifications are listed next to each other in the table below.
|
Model |
SDS1102 |
SDS1104 |
SDS1202 |
|
Channels |
2 |
4 |
2 |
|
Bandwidth |
100 MHz |
100 MHz |
200 MHz |
|
Sample rate |
1 GSa/s |
1 GSa/s |
1 GSa/s |
Specifications
|
Memory depth |
10 Kpts |
|
Rise time |
≤3.5 ns |
|
Trigger types |
Edge, Video |
|
Vertical resolution |
8 bit |
|
Vertical scale |
5 mV/div - 5 V/div |
|
Horizontal scale |
2.0 ns/div ~ 100 s/div |
|
Measuring parameters (vertical) |
Vmax, Vmin, Vpp, Vtop, Vbase, Mean,
Vmean, Vrms, |
|
Measuring parameters (horizontal) |
Period, Freq, +Wid, -Wid, Rise time,
Fall time, +Dut, -Dut, Delay |
|
Display |
7" 800x480 TFT LCD |
|
Connectivity |
USB (Host/Device) |
|
Dimensions |
301 x 152 x 70 mm |
|
Weight |
1.1 kg |
Accessories
The
Owon SDS1102 oscilloscope comes with:
·
USB cable
·
Power cord
·
1 set of passive probes 100MHz (i.e. 2 probes)
·
Probe setting tool
CD
with software
