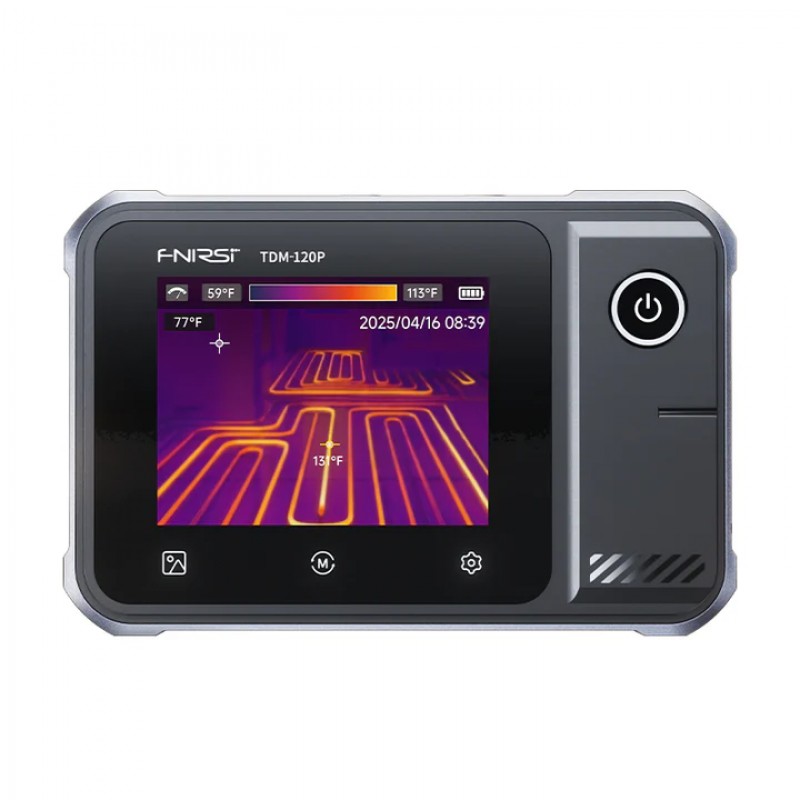

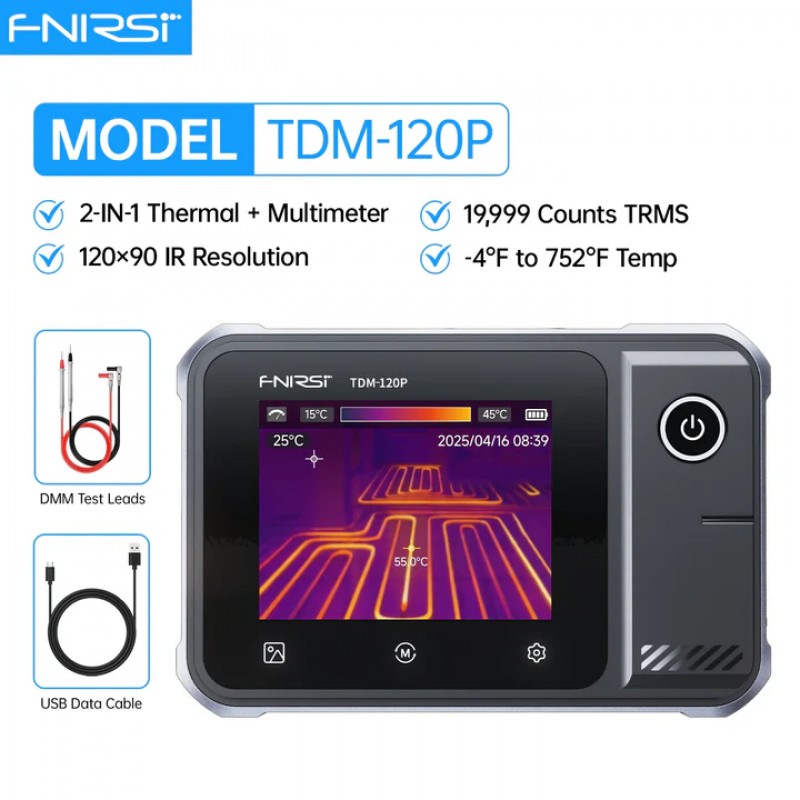

FNIRSI® TDM-120P / TDM-120 Thermal Imaging Multimeter

Key Features

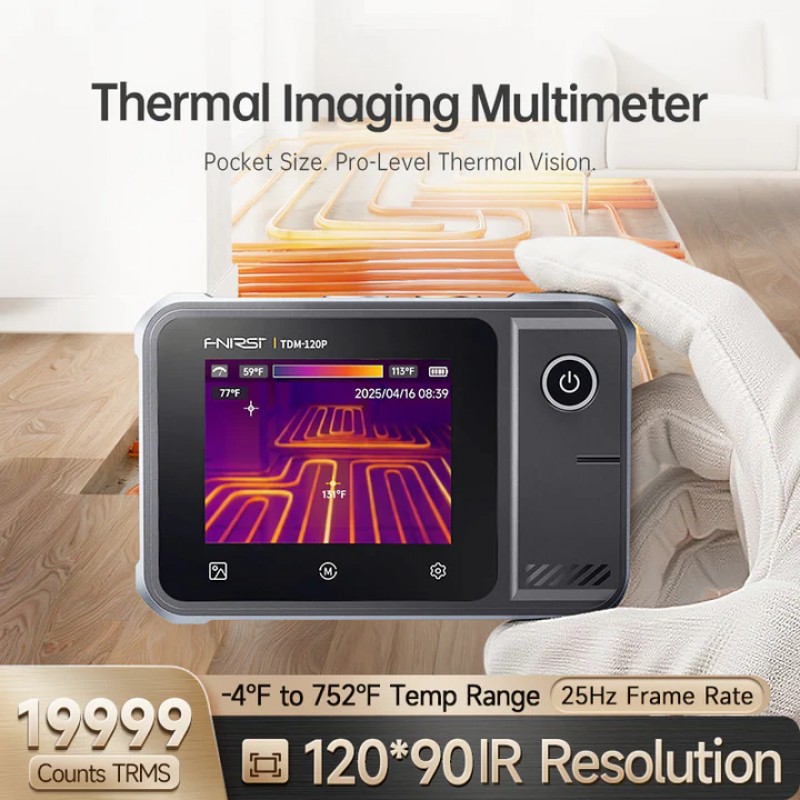

• HD Thermal Imaging Module: 120×90 infrared resolution with vanadium oxide detector; 25Hz refresh rate for smooth real-time thermal imaging, capturing temperature anomalies clearly and instantly.
• Superior Thermal Sensitivity & Adjustability: <60mK thermal sensitivity, paired with 0.01-1 adjustable emissivity and 0.5m-3m measuring distance, ensuring accurate temperature detection in diverse application scenarios.

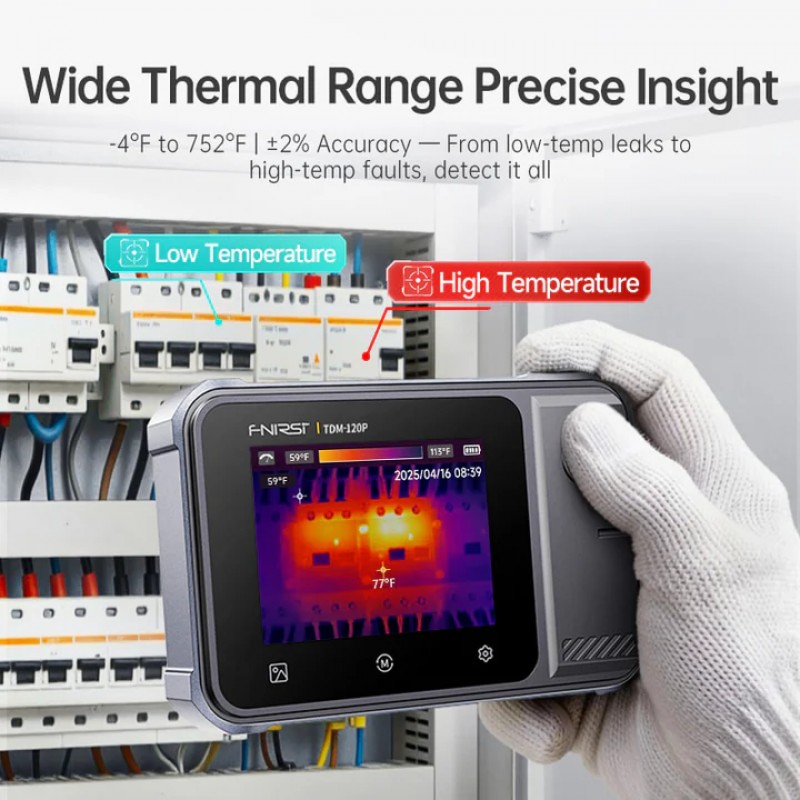

• Precise Wide-Range Temperature Measurement: Supports -4℉ to 752℉ (-20℃~400℃) full-range temperature testing with ±2℃ or ±2% (max value) accuracy; equipped with automatic hot/cold spot tracking and high/low temperature alarm for quick fault location.
• 19999-Count True RMS Multimeter with Full Functions: Delivers professional-grade precision for DC voltage (0-1000V, ±0.5%+3) and AC voltage (0-750V, ±1%+3); supports multi-range resistance, capacitance, continuity and diode testing, with data hold function and real-time max/min value display for convenient data recording and analysis.
• 2.8-inch LCD Touch Screen Operation: Responsive LCD touch control with 7 switchable color palettes (Arctic/Hot Iron/Iron Red/Rainbow/Lava/Black Hot/White Hot) for clear visual distinction of temperature differences on thermal images.
• Flexible Data Storage & Export: One-click thermal image save to plug-and-play SD card; USB one-key export of images and measurement data, facilitating test report sorting and team data sharing.
• Customizable Smart System Settings: Built-in Simplified Chinese and English language options; adjustable auto power-off (5/10/20min/OFF) and screen brightness, with ℃/℉ temperature unit switch to meet different usage habits.
• Humanized Temperature Testing Design: Dual cursor measurement (center + floating) for flexible temperature point selection; fixed center temperature display and intelligent high-temperature area tracking for precise testing.
• Portable & Rechargeable On-Site Design: Compact pocket-sized body for easy carrying during field work; Type-C charging interface for fast and convenient power supply, ideal for long-time outdoor and on-site operations.
• Multi-Scenario Professional Adaptation: Perfectly suited for HVAC repair, water leakage detection, electrical circuit inspection, air conditioning maintenance, industrial equipment testing and automotive fault diagnosis.

Specifications

Thermal Imaging Parameters:

Multimeter Parameters (only TDM-120P support):
