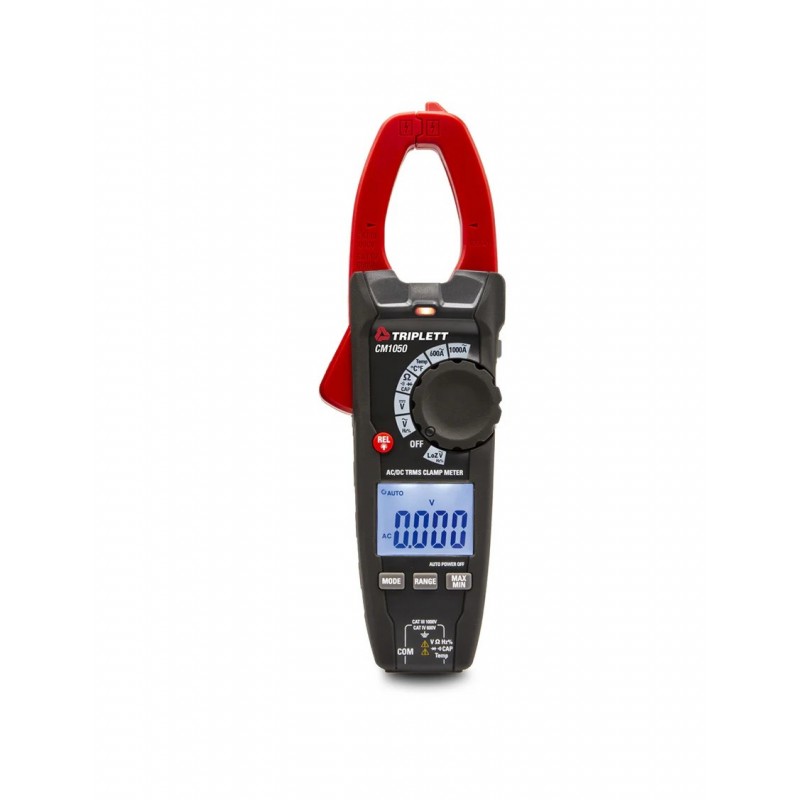

TRIPLETT - 1000A True RMS AC/DC Clamp Meter (CM1050)
-20%
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Captures the instantaneous surge (inrush) current when power equipment is turned on
- 1.4" (35mm) clamp jaw
- Built-in Non-Contact Voltage Detector with LED
- Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
- Lo Z (impedance) mode for identifying ghost voltages
- Peak voltage measurement with Min/Max
- Data Hold freezes the display and Relative Mode for making comparisons to a stored reference value and DC Zero
- Auto power off with disable
- Built-in Flashlight
- cETLus listed

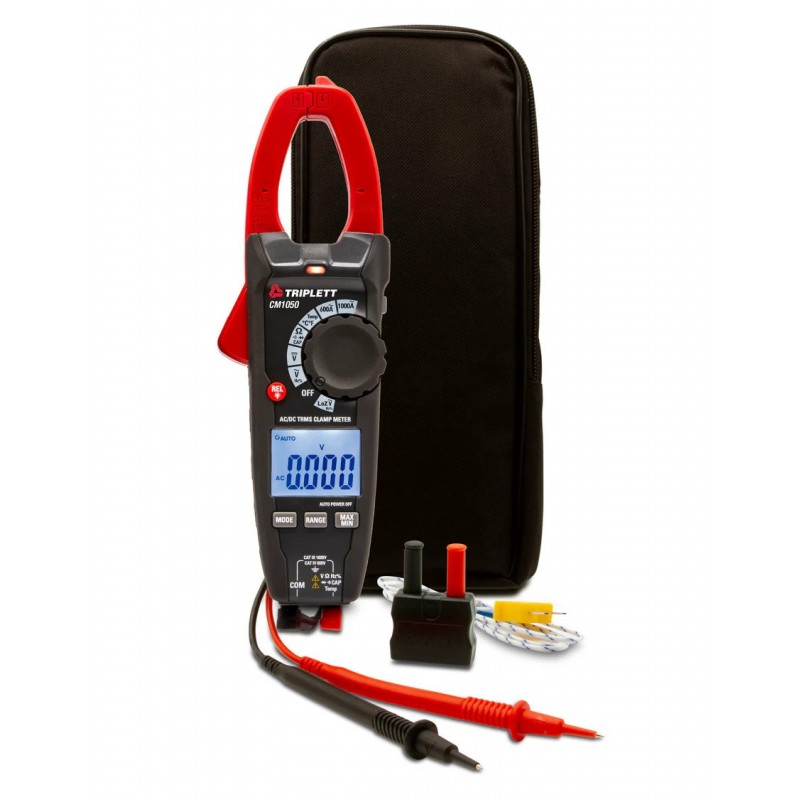

- Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
- 1 year warranty
| CM1000 | CM1050 | |
| True RMS | ✓ | ✓ |
| Display counts | 6000 count | 6000 count |
| AC Current | 1000A | 1000A |
| ACA Accuracy | ±2.8% | ±2.8% |
| DC Current | — | 1000A |
| AC/DC Voltage | 1000V | 1000V |
| Resistance | 60MΩ | 60MΩ |
| Temperature | -4 to 1832°F (-20 to 1000°C) | -4 to 1832°F (-20 to 1000°C) |
| Capacitance | 100mF | 100mF |
| Frequency | 100kHz | 100kHz |
| Duty Cycle | 10.0 to 90.0% | 10.0 to 90.0% |
| Continuity | <50Ω | <50Ω |
| Lo Pass Filter (LPF) | Yes | Yes |
| LoZ Mode | Yes | Yes |
| NCV Detector | >90V | >90V |
| Inrush Current | 100ms | 100ms |
| Safety Category | CAT IV-600V | CAT IV-600V |
| Dimensions | 9.9 x 3.2 x 1.7" (249 x 81.5 x 42.2mm) | 9.9 x 3.2 x 1.7" (249 x 81.5 x 42.2mm) |
| Weight | 11.3oz (320g) | 11.5oz (327g) |
