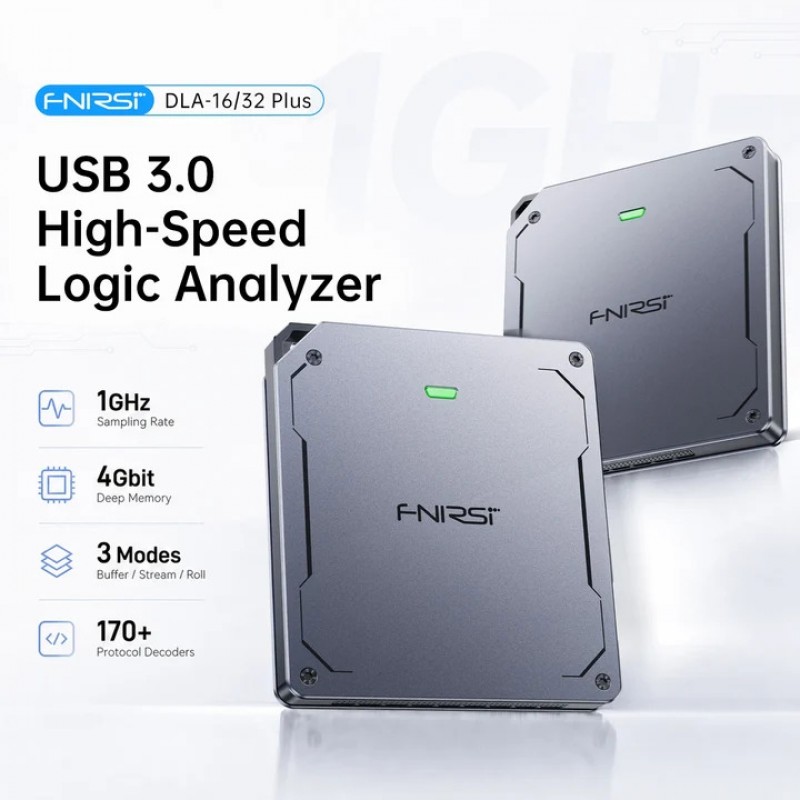

FNIRSI® DLA-32 Plus Logic Analyzer, USB 3.0, 4Gbit

Feature

• 16CH / 32CH Flexible Logic Analysis: Choose between DLA-16 Plus with 16 digital channels and DLA-32 Plus with 32 digital channels, providing a suitable channel count for different digital debugging requirements.

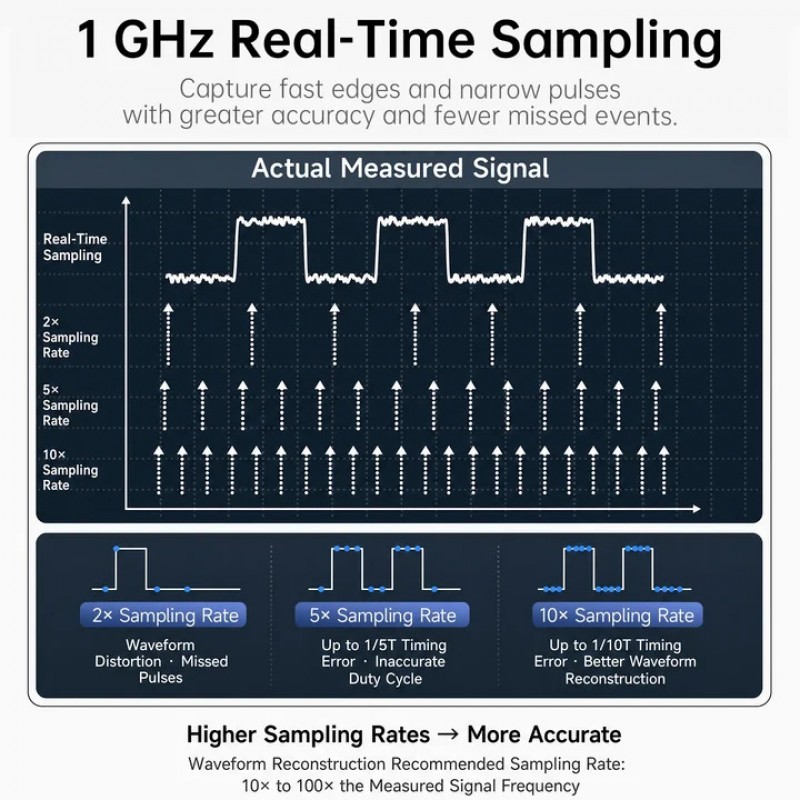

• Up to 1GHz High-Speed Sampling: Both models support up to 1CH/1GHz and 8CH/1GHz sampling. DLA-16 Plus reaches 16CH/500MHz, while DLA-32 Plus supports up to 32CH/250MHz for broader simultaneous signal visibility.

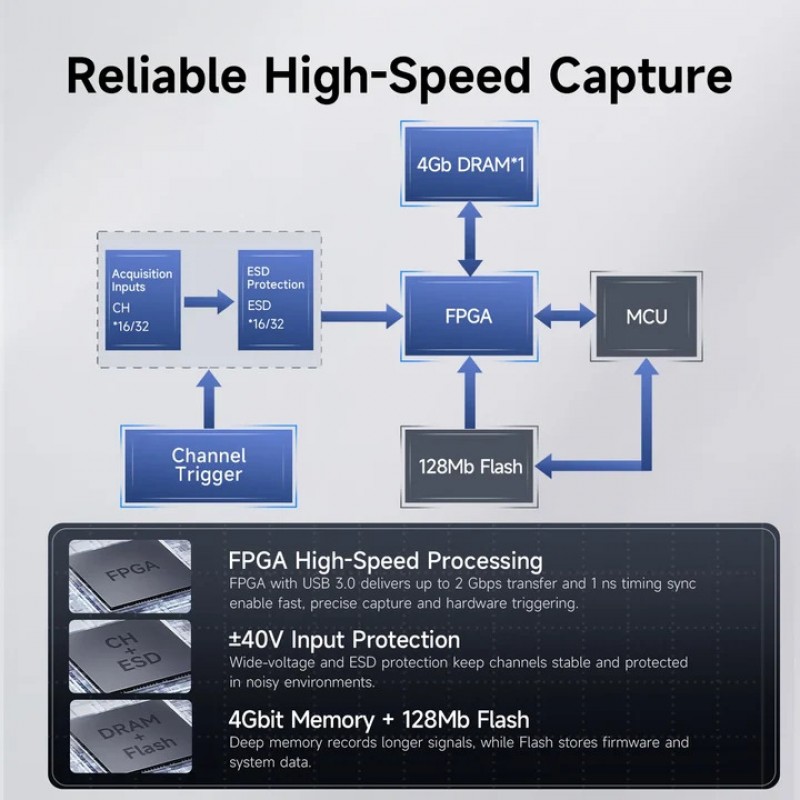

• USB 3.0 High-Speed Data Transfer: USB 3.0 connectivity provides up to 5Gbps transfer speed, supporting efficient transmission of captured digital waveform data between the logic analyzer and computer.
• 4Gbit Hardware Memory: Both models feature 4Gbit hardware memory for Buffer-mode acquisition, providing substantial storage capacity for high-speed digital signal capture and analysis.
• Flexible Stream Sampling: DLA-16 Plus supports up to 16CH/125MHz Stream sampling, while DLA-32 Plus supports up to 32CH/50MHz, allowing longer-duration digital signal acquisition with more channels.
• Buffer, Stream & Roll Acquisition Modes: Use Buffer mode for high-speed capture, Stream mode for long-duration recording, or Roll mode for real-time waveform monitoring according to the measurement task.
• Advanced Trigger Functions: Supports rising edge, falling edge, high level, low level and any-edge triggering, together with serial and parallel trigger functions for targeted digital event capture.
• Multi-Level Parallel Triggering: DLA-16 Plus supports up to 16-level parallel triggering, helping identify specific combinations of digital states during complex timing analysis.
• 170+ Protocol Decoding: Supports more than 170 protocol decoding options and an open protocol library for custom protocol support, helping analyze a wide range of digital communication signals.
• 4-Channel PWM Output: Four PWM output channels provide 3.3V signals from 1Hz to 20MHz, adding signal-output capability for hardware debugging and verification.
• Digital Waveform Measurements: Supports pulse width, period, frequency, duty cycle, cross-channel and time-difference measurements for detailed timing and waveform analysis.
• Efficient Waveform Search & Navigation: Search captured data by signal level or edge, zoom into selected waveform regions, pan through captured data and navigate multiple channels efficiently.
• Flexible Data Storage & Export: Save projects in .demo format and export captured data as CSV or BIN files for further analysis, documentation and data sharing.
• Customizable DLA-Logic Software: Supports multiple pages, custom channel colors, customizable shortcuts, firmware updates, Chinese/English interfaces and light/dark themes.

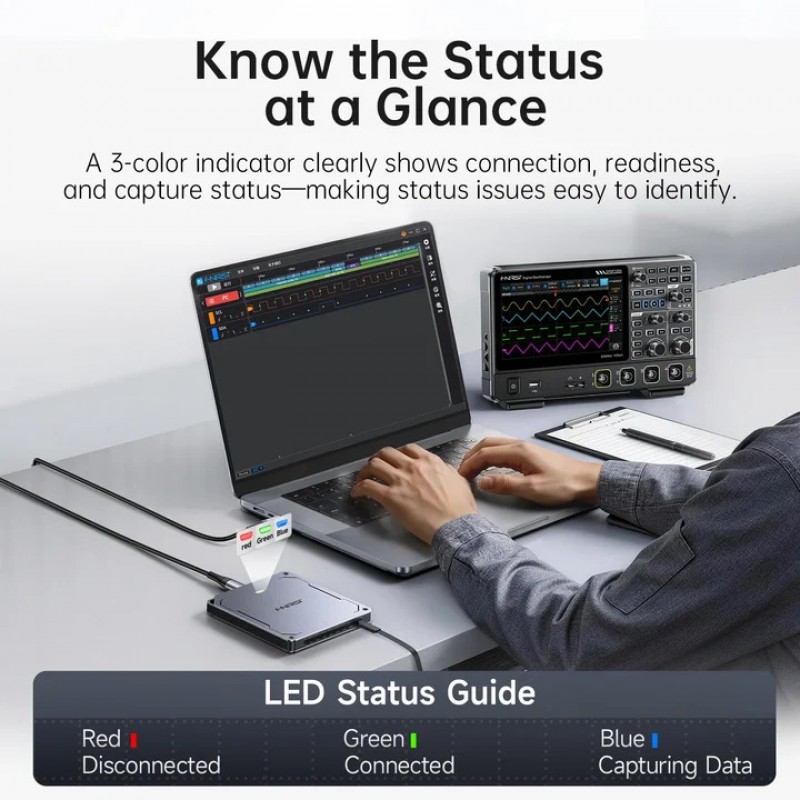

• Compact USB-C Design: Both models use a compact approximately 90 × 81 × 11.5mm design with USB Type-C connectivity and status LED indicators for quick device-state identification.

Which Model Should You Choose?

DLA-16 Plus: A strong choice when 16 channels are sufficient and higher sampling rates across all 16 channels are preferred.

DLA-32 Plus: A better fit for complex digital systems that require simultaneous observation of more signals across up to 32 channels.

DLA-16 Plus / DLA-32 Plus Package List
