Peak Electronics UTP05E network cable analyser - extensive kit
Νέο
7-10 Ημερες
Details
The Peak Electronics UTP05 Atlas IT network cable analyser is an automatic network cable analyser for CAT 5, 5e, and 6 network cables up to 150m long, capable of quickly and clearly identifying faulty cables. The device tests all 8 wires within the network cables. The analyser has features such as automatic connection pattern recognition and missing connection identification. The UTP05 is very user-friendly, simply connect one end of your network cable to the analyser and the other end to the terminator and press the test button. Additionally, everything is clearly shown on an LCD (not backlit).
Specifications
| Cable category | Cat 5, 5e, 6 (UTP) |
| Connection type | RJ45 plug or socket |
| Lines tested | 8 lines (shielding not tested) |
| Max. test cable length | 150 m |
| Test voltage | ±5 V into open circuit |
| Test current | ±2.5 mA into short circuit |
| Dimensions | 103 x 70 x 20 mm |
| Weight | 580 g |

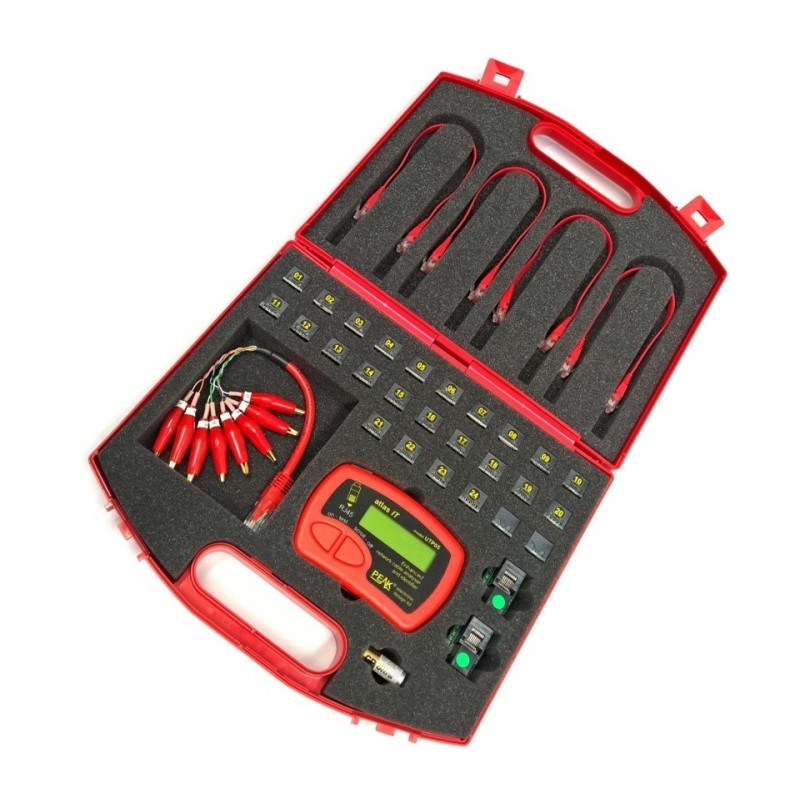

Accessories
The UTP05E kit comes with:- 2x 12V alkaline batteries
- 2x Miniature terminators
- 24x Miniature identified terminators
- 4x Short patch cables
- 2x RJ11-to-RJ45 adapter
- 1x RJ45 to 8x gold plated crocodile adapters
- 1x Carry case
