GW Instek GPT-9603 Hi-Pot tester

The GW Instek GPT-9603 is a 3-in-1 electrical safety tester combining AC withstand voltage, DC withstand voltage and insulation resistance testing. Designed for routine testing of electrical equipment and components, it offers adjustable test settings and clear PASS/FAIL indication.

Key Features

• AC Hipot: 100 V to 5,000 V AC, with up to 20 mA output current.

• DC Hipot: 100 V to 6,000 V DC.

• 100 VA maximum AC output capacity.

• Insulation resistance testing for evaluating insulation quality.

• Adjustable test voltage, test duration and current limits.

• Automatic test sequences: withstand voltage followed by insulation resistance, or the reverse.

• Arc detection and RMS current measurement.

• Zero-crossing turn-on operation to reduce switching transients.

• Safety interlock to help prevent unintended high-voltage operation.

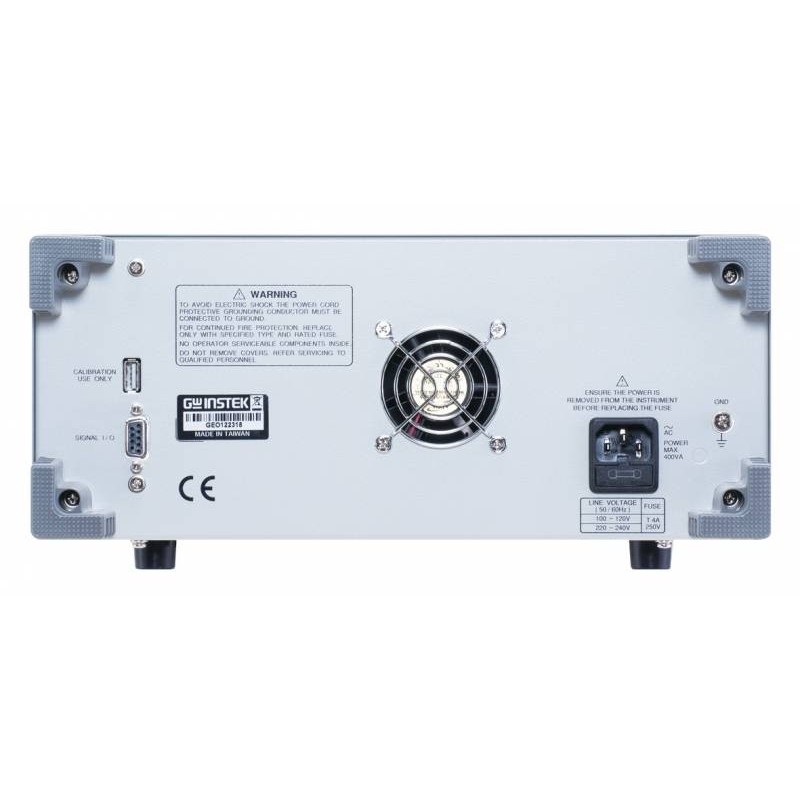

• Remote start/stop control and Signal I/O interface.

• Clear 240 × 48 dot-matrix LCD.

Applications

Suitable for production and quality-control testing of electrical equipment, components, cables and assemblies, where the required test parameters fall within the instrument’s specifications.

Included Accessories

Power cord, interlock key, GHT-119 remote terminal cable and GHT-114 test lead.
