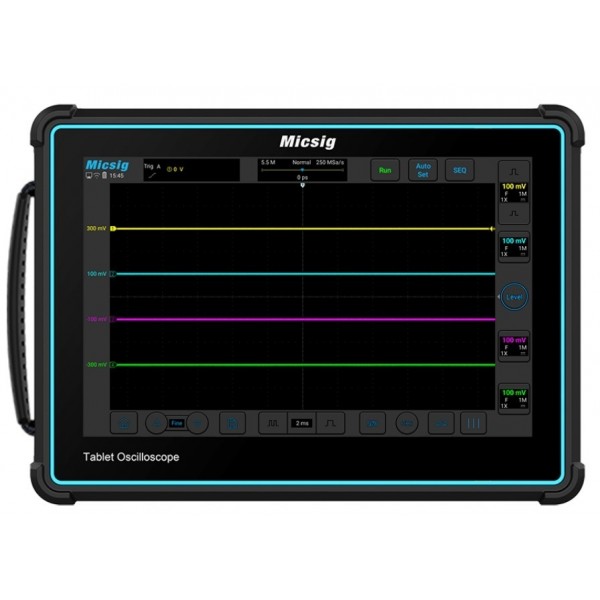

Micsig ATO3004 automotive oscilloscope

Νέο 3-5 Ημέρες Micsig ATO3004 automotive oscilloscope
Micsig ATO3004 automotive oscilloscope Micsig ATO3004 automotive oscilloscope

Details

The Micsig ATO3004 is an oscilloscope from Micsig specially made for the automotive industry. This model comes with a 2GSa/s sample rate, a memory depth of 220Mpts and a bandwidth of 300MHz. With multiple interfaces like: WIFI, USB and HDMI, 4 channels and the 10.1" touchscreen display you can test various of things. Included automotive tests are: Charging/Start Circuits, Actuators, Ignition and more. With the internal 32GB memory you can store waveforms and screenshots locally. It is also possible to show the waveforms on your phone or on a display.

Specifications

Channels4
Rise time≤1.16 ns
Vertical scale1 mV/div - 10 V/div(1MΩ/50Ω)
Horizontal scale1 ns/div - 1 ks/div
Decoding typeUART, CAN, CAN FD, LIN, SPI, I²C
Display10.1" Touchscreen LCD, 1280 x 800 px.
Internal storage32 GB
InterfacesWi-Fi, USB 3.0/2.0 Host, USB type-C, Grounding, HDMI, Trigger out
Battery7500 mAh (approx. 2 hours)
Eleshop noise production rating★ ★
Dimensions265 x 192 x 50 mm
Weight1.9 kg (with battery)
  • Κατασκευαστής: MICSIG
  • Κωδικός Προϊόντος: ATO3004
  • Διαθεσιμότητα: 3-5 Ημέρες
  • Download brochure
  • 1.488,00€
