Micsig MHO68-350 8CH oscilloscope

Νέο 3-5 Ημέρες Micsig MHO68-350 8CH oscilloscope
Micsig MHO68-350 8CH oscilloscope Micsig MHO68-350 8CH oscilloscope Micsig MHO68-350 8CH oscilloscope

Details

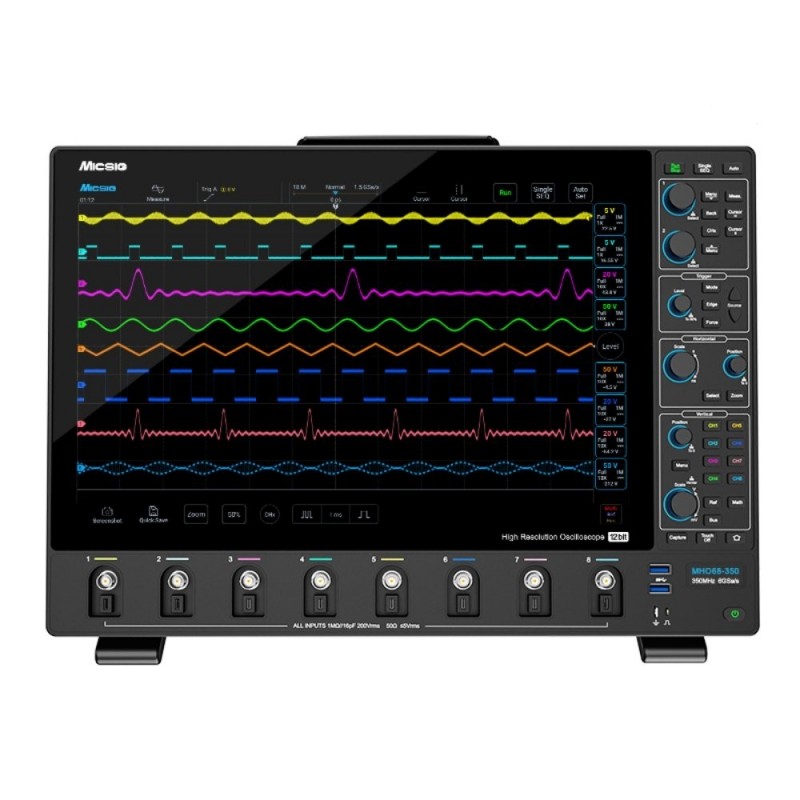

The Micsig MHO68-350 is a 350MHz oscilloscope part of the high-end MHO6 8-channel series. This MHO6 series features a 12-bit resolution, 6GS/s sampling rate, 1800 Mpts memory depth and a high waveform capture rate of 280,000wfm/s. The device is designed for engineers, scientists and educators who require high-precision testing and analysis with even the most cutting-edge devices. Additionally, the MHO6 series comes with the BNC interface for easy probe connection. Furthermore, the oscilloscope comes with an outstanding 16" 1200p touchscreen display. Finally, the oscilloscope supports PC and smartphone remote control and can simultaneously save data on multiple channels.

Specifications

Channels8
Memory depth1800 Mpts
Sample rate6 GS/s
Waveform capture rate280,000 wfm/s
Built-in storage32 GB
Vertical resolution12 bits
Vertical scale1 mV/div - 5 V/div
Horizontal scale200 ps/div - 1 ks/div
InterfacesUSB 3.0 Host, USB Type-C, LAN, HDMI
DecodingRS-232/422/485/UART, CAN, CAN FD, LIN, SPI, IIC, ARINC429, 1553B
Display16" touchscreen LCD (1920x1200)
Dimensions443 x 307 x 35 mm
Weight5.7 kg

Accessories

  • 8x Passive probes
  • Wireless network card
  • Power adapter
  • Power cord
  • Calibration certificate
  • Κατασκευαστής: MICSIG
  • Κωδικός Προϊόντος: MHO68-350
  • Διαθεσιμότητα: 3-5 Ημέρες
  • Download brochure
  • 11.780,00€
