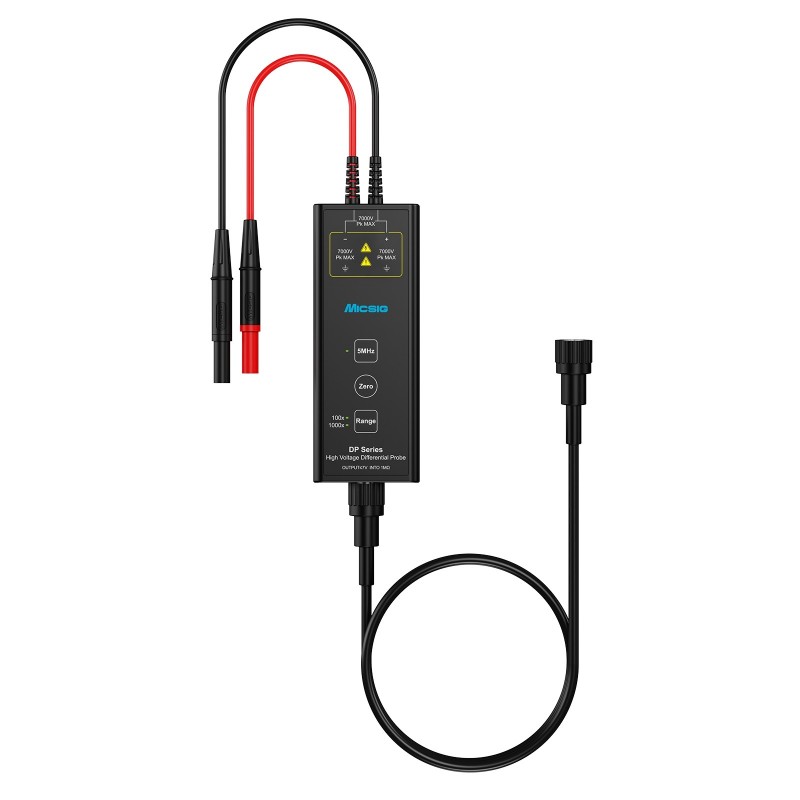

Micsig DP702 differential probe 200MHZ 700V

Νέο 3-5 Ημέρες

Specifications

Max. input differential voltage	70 V（20X) 700 V（200X）
Noise	≤ 20 mVrms (20X) ≤ 90 mVrms (200X)
Delay time	11.7 ns (20X) 11.7 ns (200X)
Gain accuracy	± 2%
Output voltage	≤ 3.5 V
Input impedance	6 MΩ / 1.67 pF (differential) 3 MΩ / 3.3 pF (each input to ground)
Output impedance	1 MΩ
CMRR	DC: > -80 dB 100 kHz: > -60 dB 10 MHz: > -30 dB 100 MHz: > -26 dB
Power supply	USB-C (5 V), 2 W
Cable length	Input: 31 cm Output: 100 cm
Dimensions	13.5 x 5 x 2.5 cm

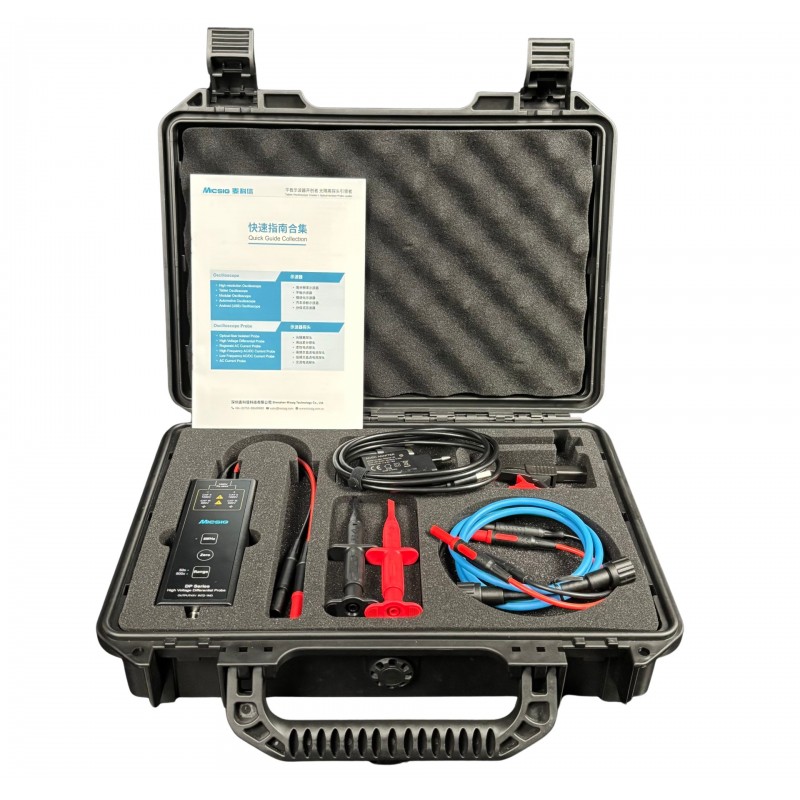

The following accessories are included with the differential probe:
