KIKUSUI TOS7301 Battery Insulation Resistance Tester
KIKUSUI TOS7301 – Battery Insulation
Resistance Tester, 1000 V DC

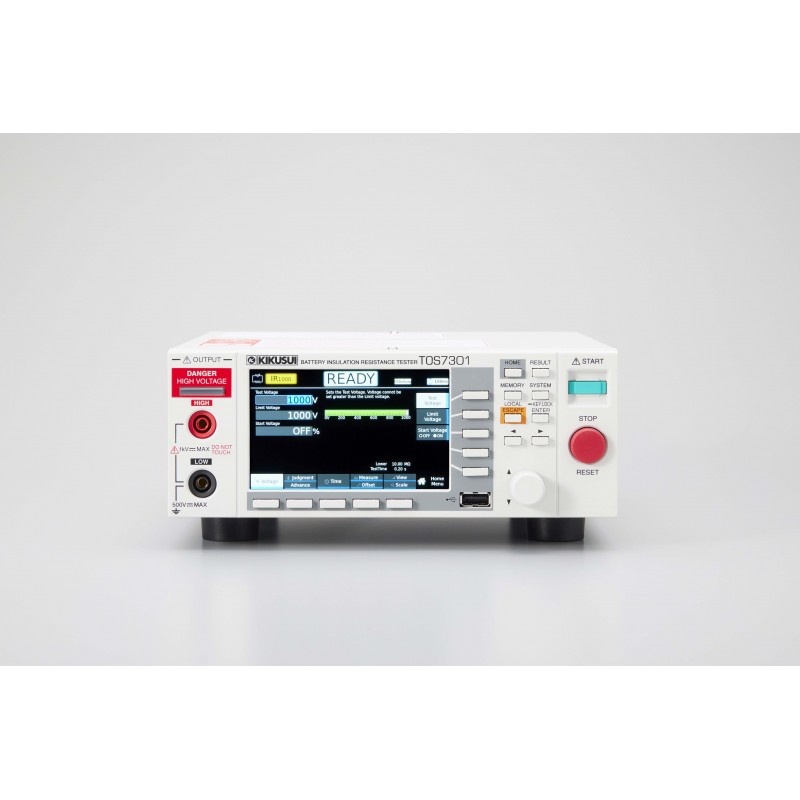

The KIKUSUI TOS7301 is a
benchtop insulation resistance tester designed for rechargeable batteries,
electrical and electronic components, and laboratory applications. It provides
an adjustable test voltage from 25 to 1000 V DC and measures insulation resistance
from 0.001 MΩ to 10 GΩ.
The built-in dV judgment
function helps protect the device under test by stopping the test when repeated
voltage changes exceed the configured threshold. Contact check and
short-circuit detection functions help identify connection faults and shorted
devices before high voltage is applied.
A 4.3-inch color LCD provides
clear numerical and graphical measurement displays. With selectable measurement
aperture times down to 10 ms, CSV data export, and external control interfaces,
the TOS7301 is suitable for quality assurance, automated production testing,
and research and development.
Technical Specifications
|
Parameter |
Specification |
|
Insulation test voltage |
25–1000 V DC |
|
Voltage setting resolution |
1 V |
|
Voltage setting accuracy |
±(1% of setting + 2 V) |
|
Resistance measurement range |
0.001 MΩ–10.00 GΩ, depending on test voltage and measurement current |
|
Maximum rated output current |
1 mA |
|
Maximum rated output power |
1 W |
|
Measurement aperture time |
10 / 16.66 / 20 / 100 ms |
|
Judgment functions |
Upper/lower limits, PASS/FAIL, dV judgment |
|
Test functions |
Contact check, short-circuit detection, automatic discharge |
|
Display |
4.3-inch color LCD with graphical measurement display |
|

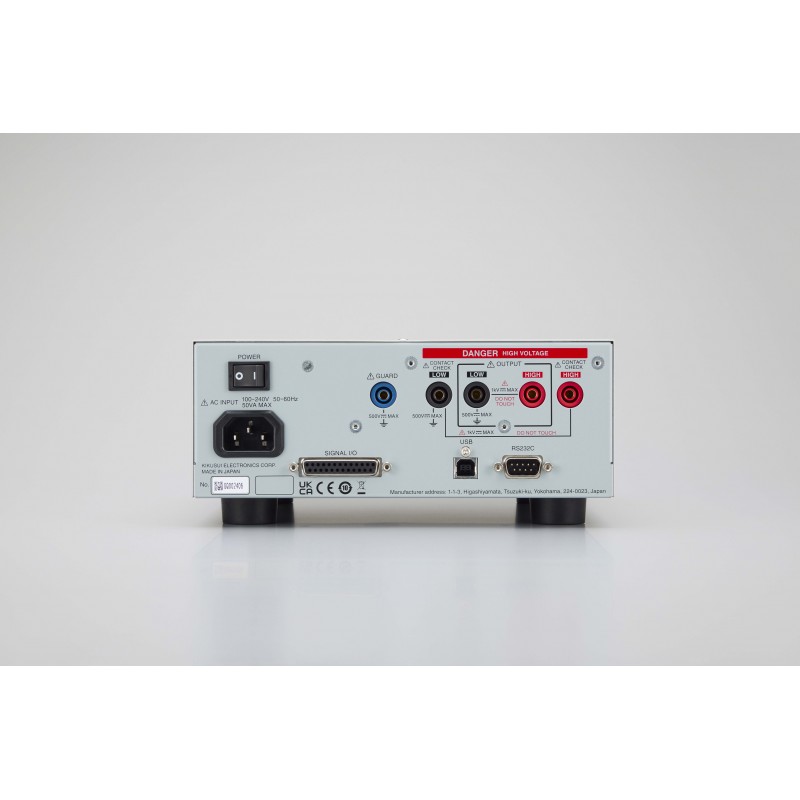

Interfaces |
USB, RS-232C, SIGNAL I/O via 25-pin D-sub connector |
|
Data storage |
CSV export to USB flash drive |
|
AC power supply |
100–240 V AC, 47–63 Hz |
|
Maximum power consumption |
50 VA |
|
Operating temperature |
0 to +40°C |
LAN connectivity is available on the separate
TOS7301 WITH LAN model.
