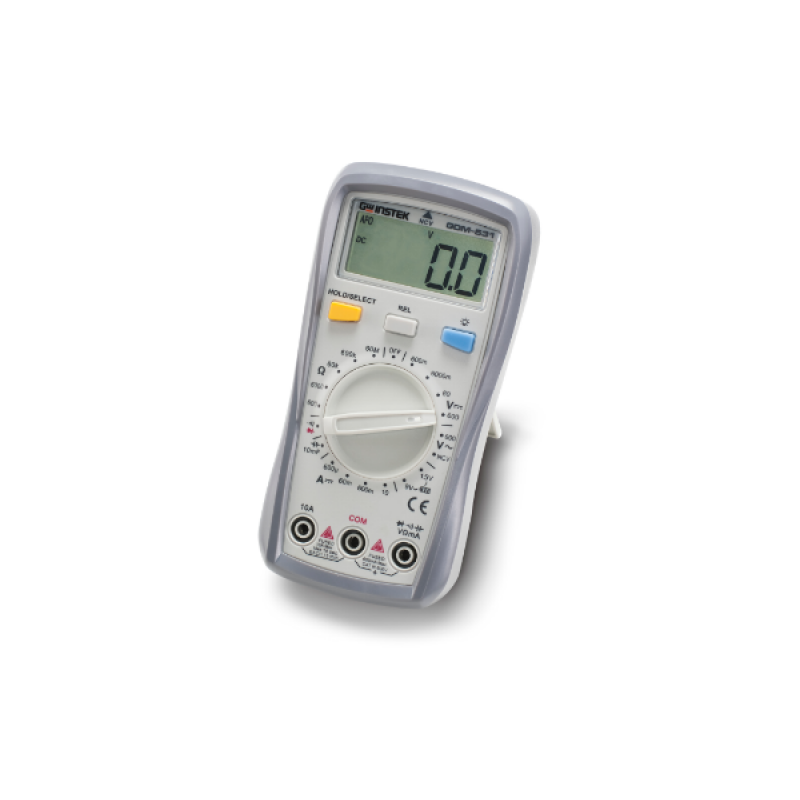

GW INSTEK GDM-531 ΠΟΛΥΜΕΤΡΟ 600V 6000 counts

-17%

Περιγραφή

Details

The Gw Instek GDM-531 belongs to the GDM-500 series of multimeters. This multimeter is an affordable, durable, and user-friendly device capable of making basic measurements with high accuracy, suitable for various applications. The GDM-500 series is fitted with audible and visual alarms. If the voltage/current exceeds the DMM's measurement range, an alarm will immediately sound, preventing instrument damage due to misuse.

Compare models

Below is an overview of the main differences between the GDM-500 series multimeters.

Model	GDM-531	GDM-532	GDM-533	GDM-541
Display resolution	6000 count	9999 count	6000 count	22000 count
AC voltage	600 V	999.9 V	1000 V	1000 V
DC voltage	600 V	999.9 V	1000 V	1000 V
AC current	10 A	9.999 A	20 A	20 A
DC current	10 A	9.999 A	20 A	20 A
Max. resistance	60 MΩ	99.99 MΩ	60 MΩ	220 MΩ
Max. capacitance	9.999 mF	9.999 mF	60 mF	220 mF
Frequency	-	9.9 MHz	10 MHz	220 MHz
True RMS	No	Yes	Yes	Yes
Auto ranging	No	Yes	Yes	Yes
Analogue bar	No	No	Yes	Yes
AC + DC voltage	No	No	No	Yes
LPF ACV	No	No	No	Yes
hFE test	No	No	No	Yes
LoZ ACV	No	No	Yes	No

Specifications

Temperature	-40 - 1000 ℃
Power supply	4x 1.5V AAA
Data logging	No
Dimensions	89 x 186 x 49 mm
Weight	Approx. 400 g

Κατασκευαστής: GW INSTEK
Κωδικός Προϊόντος: GDM531
Διαθεσιμότητα: Διαθέσιμο
Download brochure
